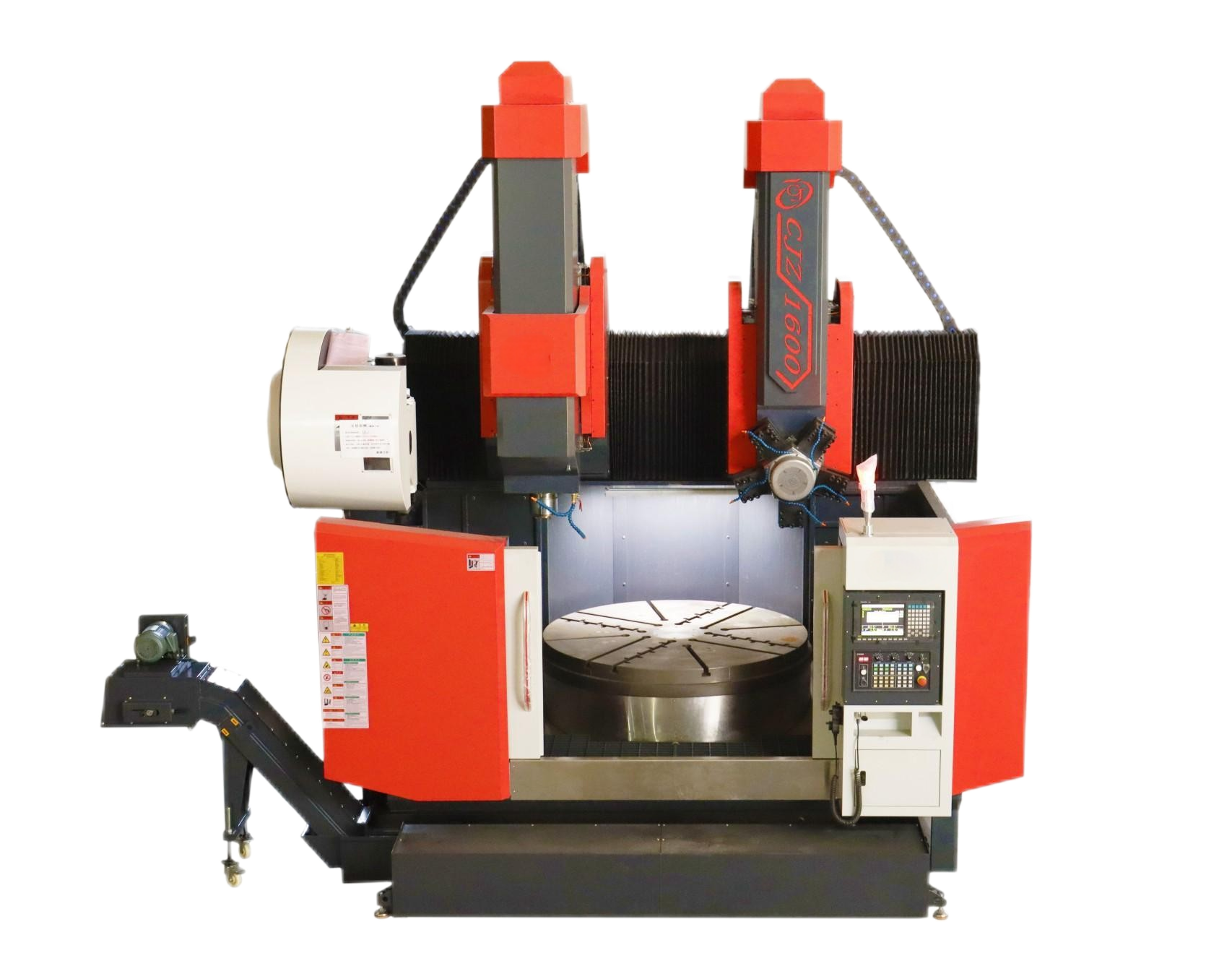

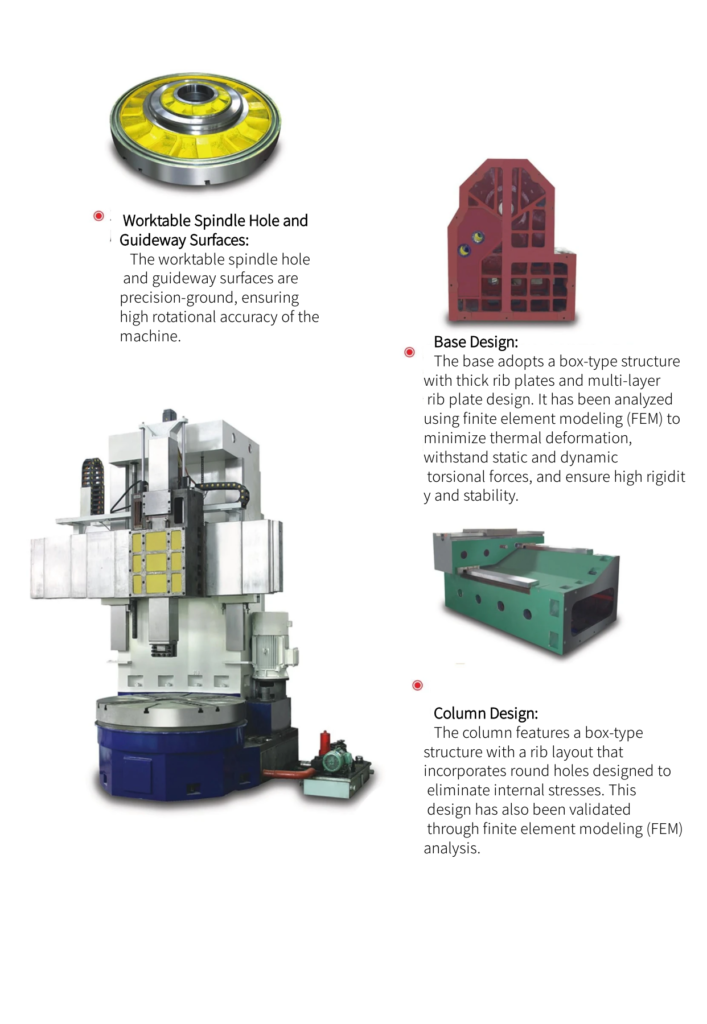

VL Series Turning-Milling (Composite) Gantry Machining Center
– This series of machines is a high-performance, versatile, and highly efficient turning-milling composite advanced equipment. In recent years, our company has successfully developed a vertical turning-milling series that integrates turning, milling, and drilling functions. This achievement is based on advanced design and manufacturing technologies from both domestic and international sources, incorporating the latest design concepts and methods.
– The series utilizes imported German cross-roller bearings, offering high precision, high load capacity, high rigidity, and high stability. It is suitable for processing large workpieces and asymmetrical components.
Application Fields:
The equipment meets the needs of industries such as new energy, oil and gas, automotive, shipbuilding, construction machinery, aerospace, engines, and heavy machinery manufacturing.
—
Main Parameters
Travel Parameters
– Turning X-Axis (Left/Right) Travel: 900 (mm)
– Turning Z-Axis (Up/Down) Travel: 700 (mm)
– Milling/Drilling X-Axis (Left/Right) Travel: 900 (mm)
– Milling/Drilling Y-Axis (Front/Rear) Travel: 500 (mm)
Worktable Parameters
– Table Diameter: Φ1600 (mm)
– Maximum Swing Diameter: Φ1700 (mm)
– Maximum Cutting Diameter: Φ1700 (mm)
– Maximum Cutting Height: 700 (mm)
– Maximum Worktable Load Capacity: 3000 (KG)
– C-Axis Worktable Indexing: 1°/0.001°
Spindle Parameters
– Turning Spindle Speed: 10-200 rpm
– Milling/Drilling Spindle Speed: 6000 rpm
– Spindle Taper: BT50
Feed Parameters
– X/X1 Axis Rapid Feed: 12 m/min
– Z/Z1 Axis Rapid Feed: 10 m/min
– Maximum Cutting Feed: 8 m/min
Tool Changer
– Turning Tool Changer: Turret-type (5 tools)
– Milling/Drilling Tool Magazine: 24 tools
– Tool Holder Type: BT50
– Maximum Tool Diameter/Length/Weight: Φ80/340/8 (KG)
Motor Parameters
– Turning Spindle Motor: 30 KW
– Milling/Drilling Spindle Motor: 11 KW
– X, X1/Z, Z1 Axis Servo Motors: 3.9/3.9 KW
Accuracy Parameters
– Positioning Accuracy: 0.008 mm
– Repeat Positioning Accuracy: 0.01 mm
– C-Axis Indexing Accuracy: 20 arc-seconds
Power Requirements
– Electrical Requirement: 50 kVA
– Air Pressure Requirement: 6-8 kg/cm²
